Visualizing Oceanographic Data with R: A Dive into oce and ggplot2

R
Oceanography
Data Analysis
Data Visualization
Published

April 20, 2025

🌊 Visualizing Oceanographic Data with R: A Dive into oce and ggplot2

Oceanographic data, such as measurements from Conductivity-Temperature-Depth (CTD) instruments, are vital for understanding marine environments. In this post, we’ll explore how to use R’s oce package to handle such data and employ ggplot2 for insightful visualizations.​

πŸ“¦ Getting Started

First, ensure that the necessary packages are installed and loaded:

Code
# Load the libraries
library(oce)
Warning: package 'oce' was built under R version 4.4.1
Loading required package: gsw
Warning: package 'gsw' was built under R version 4.4.1
Code

πŸ“₯ Loading Sample CTD Data

The oce package comes with built-in datasets, including a sample CTD dataset. Let’s load and inspect it:

Code
# Load the sample CTD dataset
data(ctd)

# View a summary of the dataset
summary(ctd)
CTD Summary
-----------

* Instrument:          SBE 25
* Temp. serial no.:    1140
* Cond. serial no.:    832
* File:                "/Users/kelley/git/oce/create_data/ctd/ctd.cnv"
* Original file:       c:\seasoft3\basin\bed0302.hex
* Start time:          2003-10-15 15:38:38
* Sample interval:     1 s
* Cruise:              Halifax Harbour
* Vessel:              Divcom3
* Station:             Stn 2
* Mean Location:       44.684N 63.644W
* Data Overview

                                Min.   Mean   Max. Dim. NAs OriginalName
    scan                         130    220    310  181   0         scan
    timeS [s]                    129    219    309  181   0        timeS
    pressure [dbar]             1.48 22.885 44.141  181   0           pr
    depth [m]                  1.468 22.698 43.778  181   0         depS
    temperature [Β°C, IPTS-68]  2.919 7.5063 14.237  181   0         t068
    salinity [PSS-78]         29.916 31.219 31.498  181   0        sal00
    flag                           0      0      0  181   0         flag

* Processing Log

    - 2018-11-14 20:03:47 UTC: `create 'ctd' object`
    - 2018-11-14 20:03:47 UTC: `read.ctd.sbe(file = file, debug = 10, processingLog = processingLog)`
    - 2018-11-14 20:03:47 UTC: `oce.edit(x = ctd, item = "startTime", value = as.POSIXct(gsub("1903",     "2003", format(ctd[["startTime"]])), tz = "UTC") + 4 * 3600,     reason = "file had year=1903, instead of 2003", person = "Dan Kelley")`

This dataset contains measurements like salinity, temperature, and pressure collected at various depths.​

πŸ” Exploring the Data

To understand the structure of the CTD data, we can extract specific parameters:

Code
# Extract salinity, temperature, and pressure
salinity <- ctd[["salinity"]]
temperature <- ctd[["temperature"]]
pressure <- ctd[["pressure"]]

πŸ“Š Visualizing with ggplot2

While oce provides its own plotting functions, integrating with ggplot2 offers enhanced customization. To use ggplot2, we’ll convert the CTD object into a data frame:

Code
# Convert CTD object to a data frame
ctd_df <- as.data.frame(ctd[["data"]])

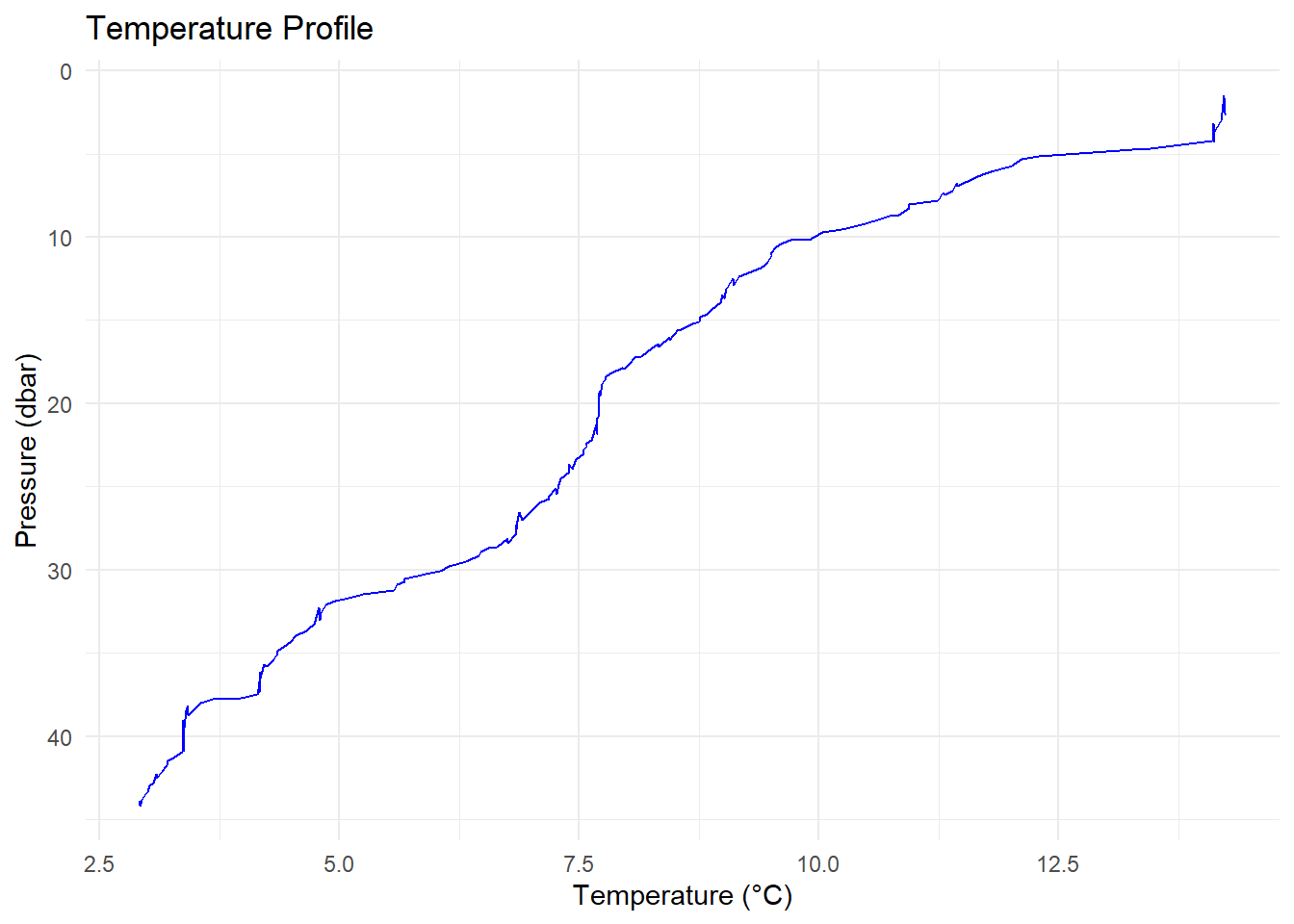

🌑️ Temperature vs. Depth

Let’s plot temperature against depth:

Code
ggplot(ctd_df, aes(x = temperature, y = pressure)) +
  geom_line(color = "blue") +
  scale_y_reverse() +  # Depth increases with pressure
  labs(title = "Temperature Profile",
       x = "Temperature (Β°C)",
       y = "Pressure (dbar)") +
  theme_minimal()

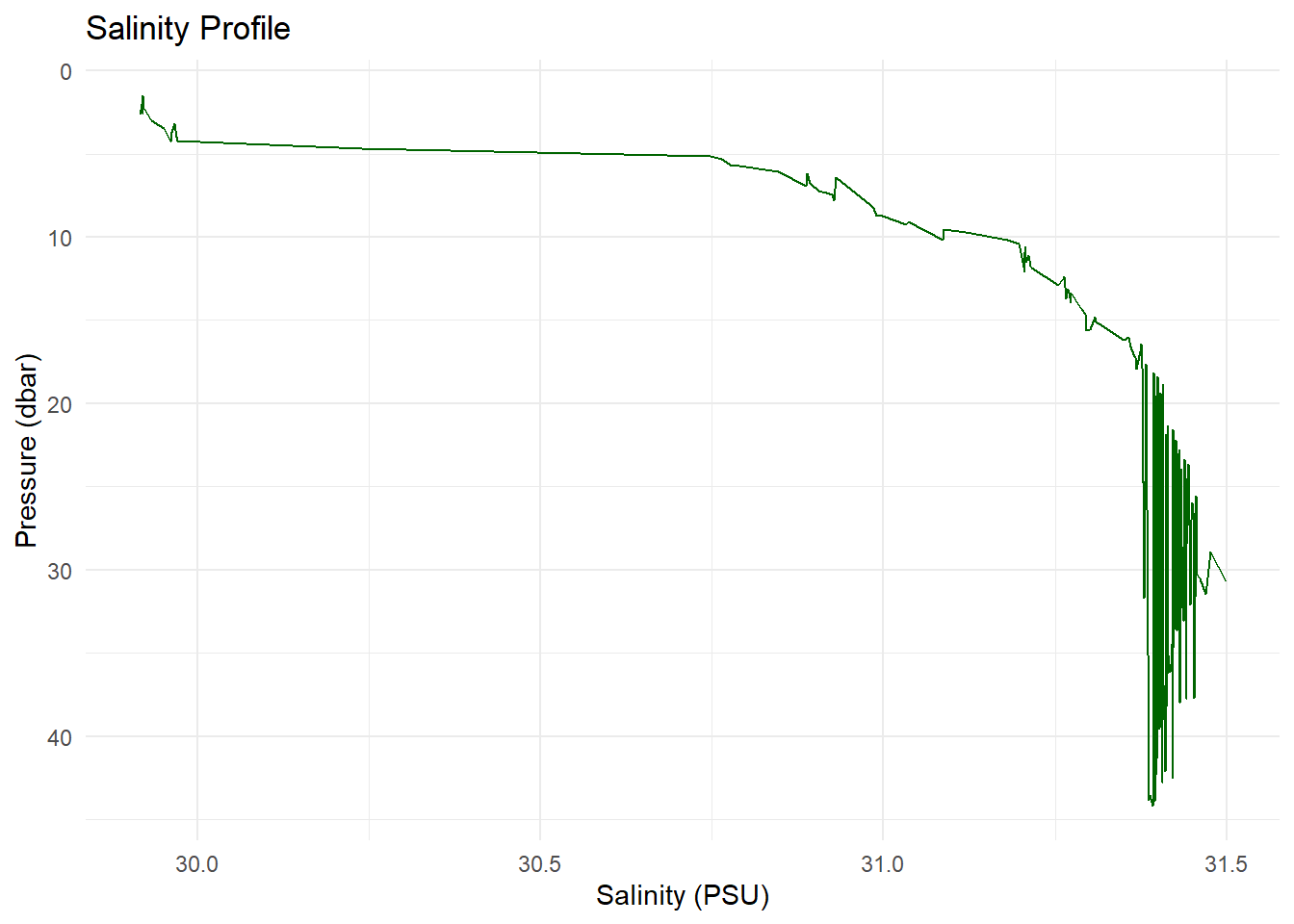

πŸ§‚ Salinity vs. Depth

Similarly, plot salinity against depth:

Code
ggplot(ctd_df, aes(x = salinity, y = pressure)) +
  geom_line(color = "darkgreen") +
  scale_y_reverse() +
  labs(title = "Salinity Profile",
       x = "Salinity (PSU)",
       y = "Pressure (dbar)") +
  theme_minimal()

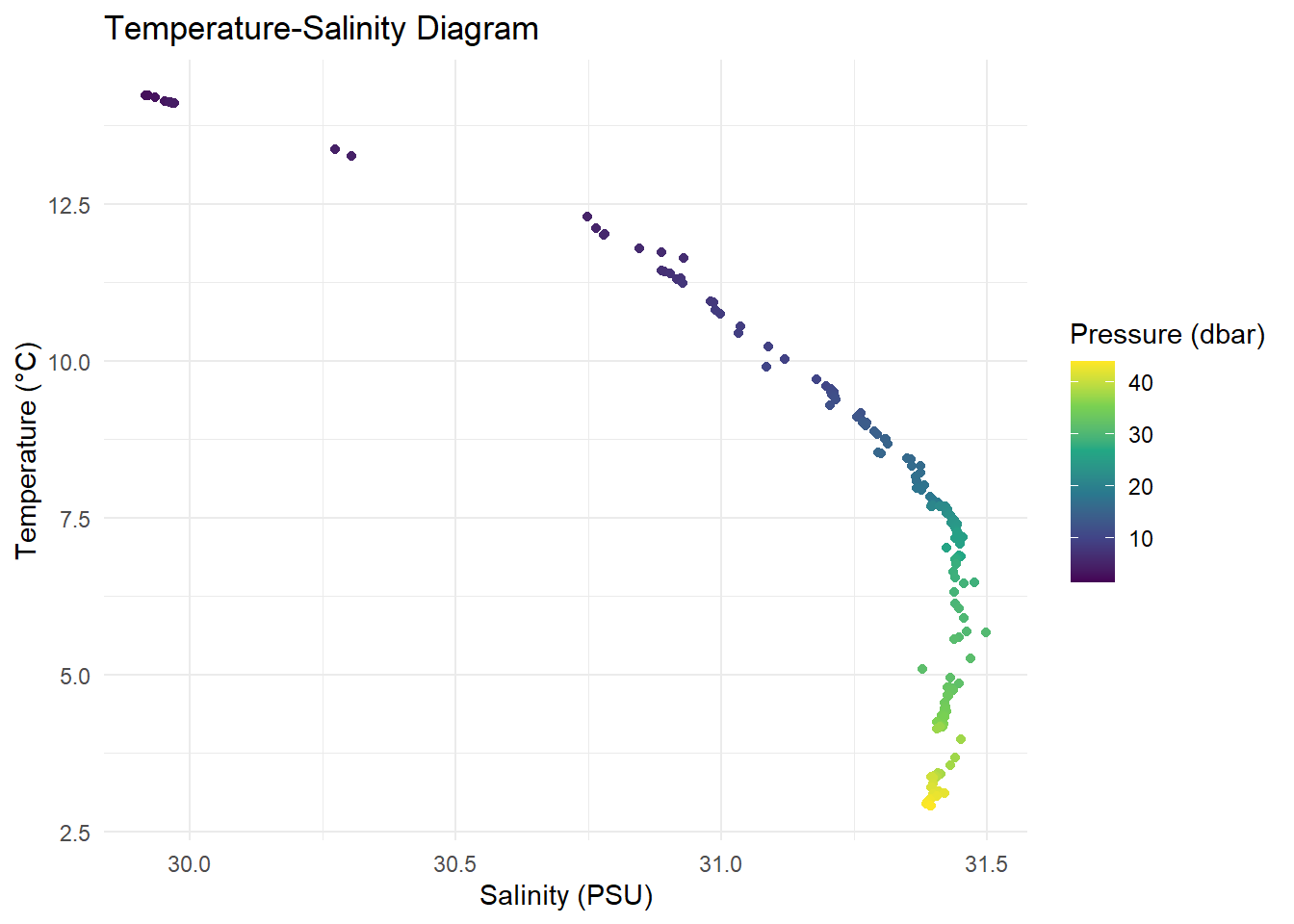

πŸ” Temperature-Salinity Diagram

A Temperature-Salinity (T-S) diagram is essential in oceanography:​

Code
ggplot(ctd_df, aes(x = salinity, y = temperature, color = pressure)) +
  geom_point() +
  #geom_line() + # uncomment the line and run again to see what happen
  scale_color_viridis_c() +
  labs(title = "Temperature-Salinity Diagram",
       x = "Salinity (PSU)",
       y = "Temperature (Β°C)",
       color = "Pressure (dbar)") +
  theme_minimal()

πŸ§ͺ Calculating Derived Parameters

The oce package allows computation of derived oceanographic parameters. For instance, potential temperature:​

Code
# Extract salinity, temperature, and pressure from the CTD object
salinity <- ctd[["salinity"]]
temperature <- ctd[["temperature"]]
pressure <- ctd[["pressure"]]

# Calculate potential temperature referenced to the surface (0 dbar)
theta <- swTheta(salinity, temperature, pressure, referencePressure = 0)

# Add the calculated potential temperature to the CTD object
ctd <- oceSetData(ctd, name = "theta", value = theta)

# Now you can access the potential temperature from the CTD object
ctd[["theta"]]
  [1] 14.220882 14.226254 14.224802 14.221876 14.226322 14.232814 14.191678
  [8] 14.111872 14.139226 14.118798 14.105862 14.099138 14.115020 13.265492
 [15] 13.373063 12.293302 12.109435 12.015314 12.010110 11.791130 11.733629
 [22] 11.629529 11.423749 11.439422 11.385709 11.291219 11.308103 11.236779
 [29] 10.937640 10.933413 10.811601 10.738723 10.541845 10.440554 10.228687
 [36] 10.030628  9.896224  9.697580  9.599891  9.548287  9.501067  9.500346
 [43]  9.459820  9.421607  9.388003  9.285917  9.158529  9.100833  9.109286
 [50]  9.024195  9.015174  8.985669  9.008138  8.964133  8.875720  8.824609
 [57]  8.753615  8.747993  8.678003  8.525725  8.537811  8.432310  8.441089
 [64]  8.316310  8.321895  8.209508  8.146105  8.073727  8.012709  7.942613
 [71]  7.968199  7.837025  7.775626  7.767216  7.732703  7.712471  7.701367
 [78]  7.715844  7.701027  7.699706  7.699588  7.692334  7.684333  7.678513
 [85]  7.682289  7.682671  7.681346  7.626632  7.575341  7.572024  7.542015
 [92]  7.541194  7.464395  7.395298  7.421262  7.387958  7.342857  7.303860
 [99]  7.279137  7.254930  7.262893  7.180320  7.177105  7.080331  7.017626
[106]  6.872869  6.896322  6.851734  6.842622  6.848199  6.841278  6.750795
[113]  6.752865  6.638302  6.545537  6.467856  6.450345  6.315282  6.132942
[120]  6.048359  5.895220  5.680801  5.672788  5.591516  5.564404  5.249339
[127]  5.092104  4.950961  4.857090  4.784814  4.798983  4.793660  4.745377
[134]  4.735672  4.676583  4.650886  4.546121  4.490427  4.453034  4.415240
[141]  4.347563  4.344150  4.314646  4.214080  4.245056  4.169873  4.176963
[148]  4.170548  4.159642  4.157528  4.163300  4.135806  3.972377  3.675338
[155]  3.552991  3.419655  3.402448  3.423120  3.370433  3.364525  3.379803
[162]  3.377899  3.370783  3.371577  3.365853  3.366042  3.374026  3.354032
[169]  3.263465  3.205088  3.197776  3.144588  3.090510  3.101591  3.061100
[176]  3.016517  2.999009  2.968614  2.933620  2.915924  2.916311

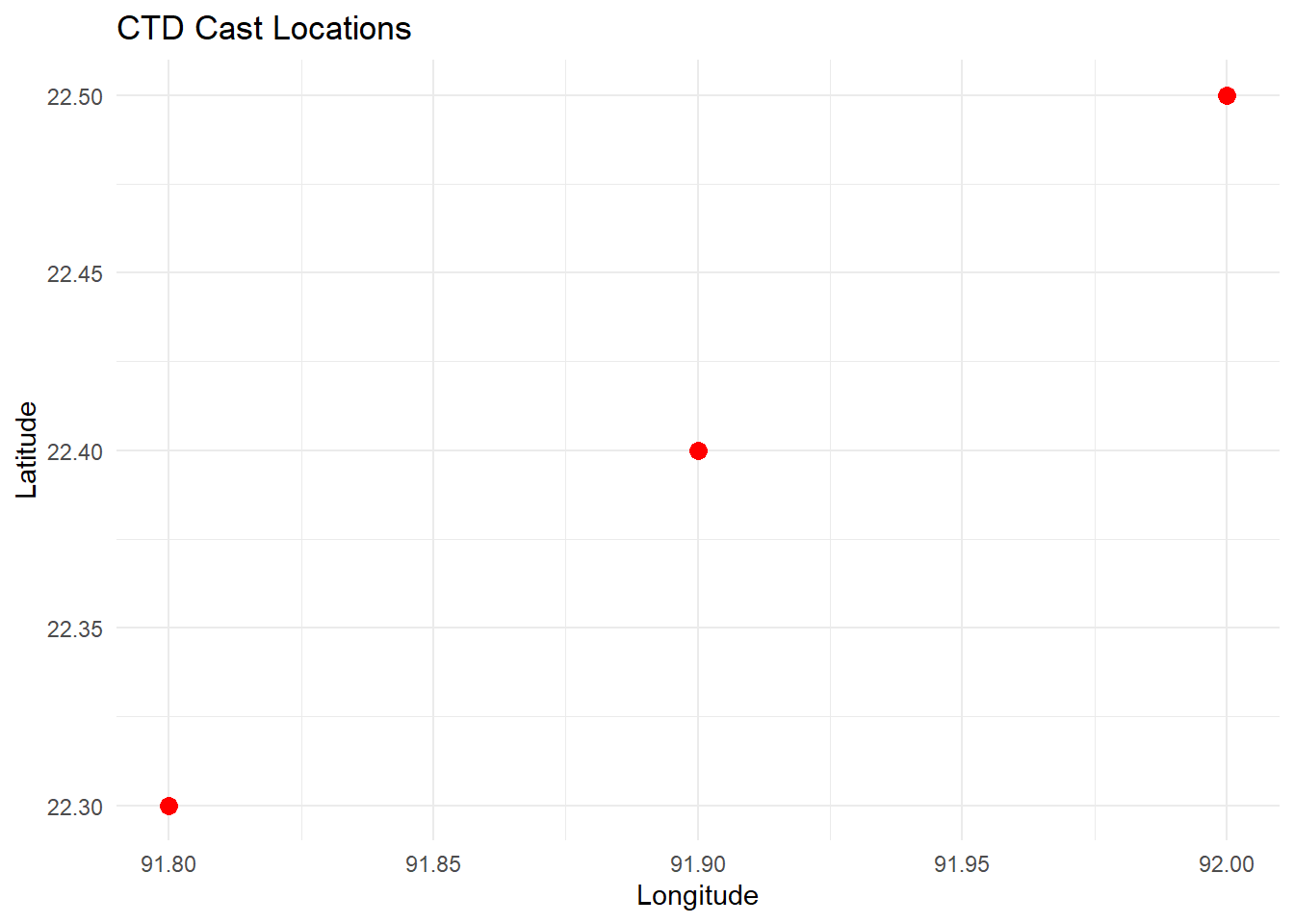

πŸ—ΊοΈ Mapping CTD Cast Locations

If you have multiple CTD casts with geographic coordinates, you can map their locations. Assuming you have a data frame ctd_locations with longitude and latitude:​

Code
# Sample data frame of CTD locations
ctd_locations <- data.frame(
  longitude = c(91.8, 91.9, 92.0),
  latitude = c(22.3, 22.4, 22.5)
)

# Plot locations
ggplot(ctd_locations, aes(x = longitude, y = latitude)) +
  geom_point(color = "red", size = 3) +
  labs(title = "CTD Cast Locations",
       x = "Longitude",
       y = "Latitude") +
  theme_minimal()

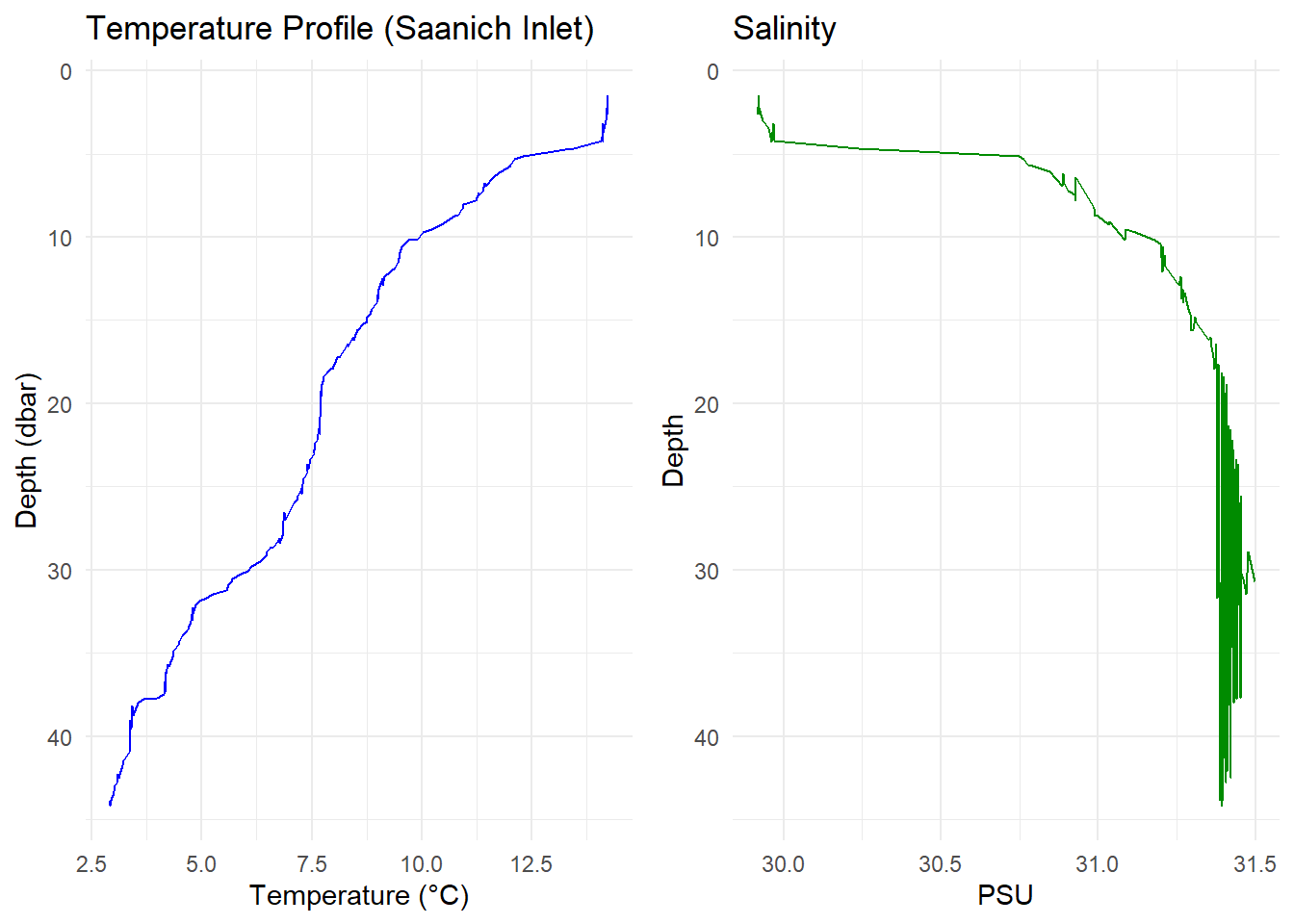

🧠 Bonus: Create a Combined Profile Plot

Code
library(gridExtra)

p1 <- ggplot(ctd_df, aes(x = temperature, y = pressure)) +
  geom_line(color = "blue") +
  scale_y_reverse() +
  labs(
    title = "Temperature Profile (Saanich Inlet)",
    x = "Temperature (Β°C)",
    y = "Depth (dbar)"
  ) +
  theme_minimal()


p2 <- ggplot(ctd_df, aes(x = salinity, y = pressure)) +
  geom_line(color = "green4") +
  scale_y_reverse() +
  labs(title = "Salinity", x = "PSU", y = "Depth") +
  theme_minimal()

gridExtra::grid.arrange(p1, p2, ncol = 2)
